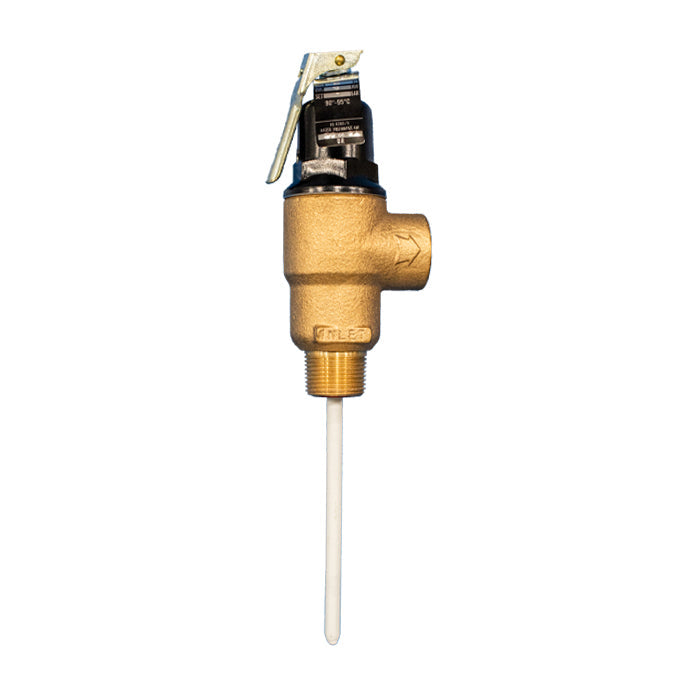

Reliance RWC FVMX Pressure & Temperature Relief Valve 3/4" x 3/4" 7 Bar - PTEM600001

Description

This is a stock item. Order by 5pm Monday to Thursday and 4.30pm Friday for same day despatch.

The Reliance Water Controls (RWC) FVMX Pressure & Temperature Relief Valve discharges water to prevent cylinder damage from excess high temperature or pressure.

Reliance Valves FVMX Pressure & Temperature Relief Valves are high-capacity pressure and temperature relief valves. The valve protects against over pressurisation or extreme temperatures over 95°C, which can occur within an unvented hot water system if the input temperature or pressure controls fail.

The valves are designed to be installed directly to the upper portions of a hot water cylinder, as this is where the hottest temperature is found. If the valve is opened, it will lift off its seat and release the water to the waste, reducing the pressure or temperature within the cylinder.

The larger FVMX valves are especially suited for commercial applications.

Features and benefits:

- High capacity protection for domestic and commercial applications
- Protects against temperatures rising above 95°C
- Prevents over pressurisation
- Lever style easing mechanism
- Available in different connection sizes

Specification

Size: 3/4" x 3/4"
Connections: BSP Male Inlet x BSP Female Outlet
Materials: Brass
Medium: Hot water only
Set Pressure (Set & Locked): 7 Barg
Temperature Relief: +90 to 95 degC
Discharge Capacity: 25kW
Probe Length: 195mm
Product Code: PTEM600001
Notes: WRAS approved
