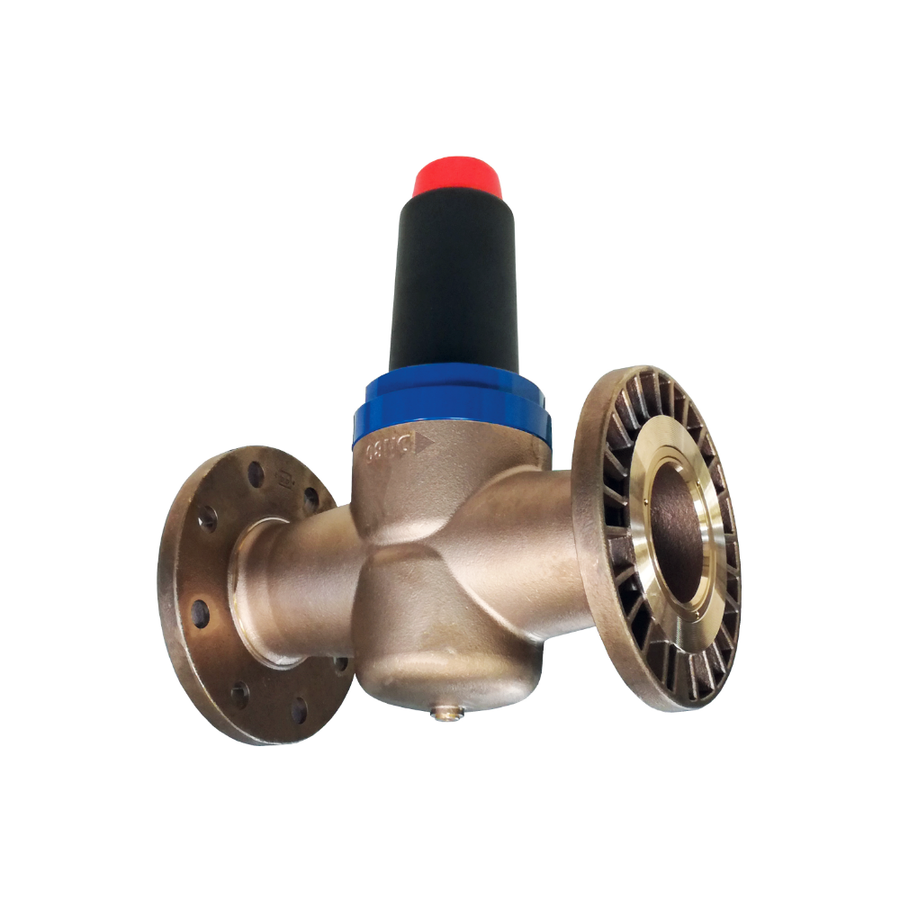

Reliance RWC 6247 Commercial & Industrial Pressure Reducing Valve

Description

When ordering, please allow 1 to 2 working weeks for delivery of this item.

High flow and hard-wearing plant room pressure reducing valve, reduces a high cold water inlet pressure to a safer lower outlet pressure.

Overview

The Reliance Valves 6247 Series Pressure Reducing Valve offers high flow rate pressure reduction with precise control, making it ideal for commercial and industrial use. Constructed from corrosion-resistant bronze, these durable valves are designed for flexible installation in any orientation and operate reliably up to a maximum temperature of 60°C.

Pressure settings are adjustable between 1.6 and 6.0 bar, and the integrated one-piece cartridge simplifies both installation and ongoing maintenance. The series is available in the following sizes:

• DN65 – PRED624001
• DN80 – PRED624002
• DN100 – PRED624003

Features and Benefits

• Robust corrosion resistant bronze
• Accurate pressure control, adjustable between 1.5 - 6.0 bar
• All working components contained in a single cartridge
• Test point on base of valve
• Install in any orientation
• Suitable for cold water use only
• Compatible with copper pipe only

We are also able to supply the replacement cartridge for the Reliance 6247 Pressure Reducing Valve.

Specification

Sizes: DN65 (PRED624001), DN80 (PRED624002), DN100 (PRED624003)
Maximum working pressure: 16.0 bar
Adjustable set pressure: 1.5 - 6.0 bar
Maximum working temperatures: 60°C
Strainer: 0.25mm
Flanges: PN16

Materials

Body: Bronze
Seals: EPDM
Spring: Stainless steel
Strainer: Stainless steel
Diaphragm: EPDM
Cover: ABS plastic

Standards & Approvals

BS EN 1567
WRAS Approved

Datasheets

Reilance RWC 6247 Commercial & Industrial Pressure Reducing Valve Datasheet
Reilance RWC 6247 Commercial & Industrial Pressure Reducing Valve IOM
