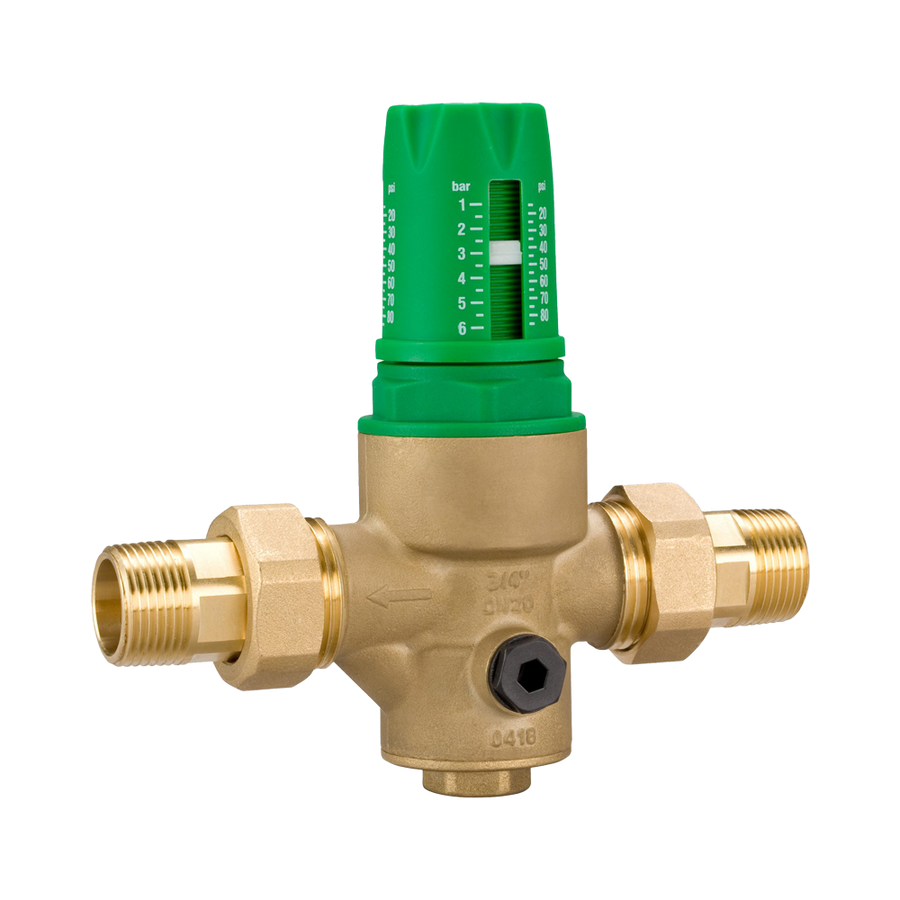

Hattersley Fig 425 PN25 Pressure Reducing Valve

Typical lead time is 3 to 5 working days. We'll contact you if this changes.

Description

Fig. 425 Pressure Reducing Valve

Features & Benefits
• PRVs enable control of pressure from boosted hot and cold water supplies to match site requirements
• Includes male union tail-pieces for ease of installation, reducing time spent on site
• Features an integral strainer preventing debris from affecting valve performance
• Recommend that isolation valves are fitted upstream and downstream of the valve to enable isolation for cleaning of strainer
• Performance in accordance with BS EN 1567 for quality assurance
• Easy access for measuring the outlet pressure
• A pressure gauge is available to measure outlet pressure for each installed valve and should be ordered separately
• WRAS Approved to 80°C for drinking water applications
• Available in sizes 1/2" to 2"

Material Specification

• DZR Brass

Pressure/Temperature Rating

• PN25

Maximum Temperature

• 80°C

Specification

• Medium: Water Only
• Connections: Male union tapered tail-pieces to BS EN 10226-1
• Outlet pressure range: 1-6 bar
• Pre set outlet pressure: 3 bar
• Design standard: BS EN 1567
• Approvals: WRAS / PED 2014/68/EU
• Mesh size: 0.5mm all sizes

Datasheet

Hattersley Fig 425 PN25 Pressure Reducing Valve Datasheet
