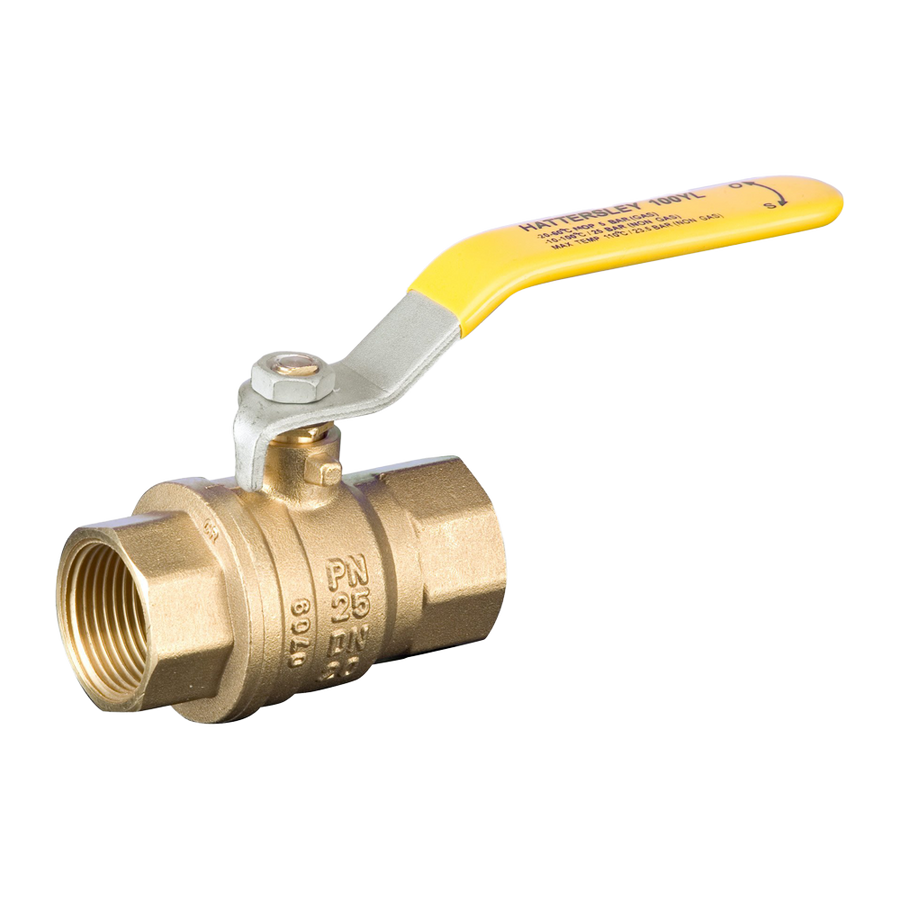

Hattersley Fig 100YL PN25 Ball Valve

Typical lead time is 3 to 5 working days. We'll contact you if this changes.

Description

Fig. 100YL Gas Threaded DZR - Lever Operated Ball Valve

Features & Benefits
• Dezincification resistant
• Light, compact and easy to install and operate
• More resistant to damage during installation
• Sizes from 1/4" to 2"
• Tested to BS EN 331:1998

Material Specification

• DZR Brass

Pressure/Temperature Ratings Compression

• Non-Gas Application
Temperature °C -10 to 100 110
Pressure bar 25 23.5

• Gas Application
Temperature °C -20 to 60
Pressure bar 5

Intermediate pressure ratings shall be determined by interpolation

Specification

• UK End Connection: BS EN 10226-2:2005 formerly BS21 Taper
• Operator: Lever
• Specification: Quarter turn
• PTFE seats and stem seal
• Tested by GL Industrial Services and complies with the essential requirements of BS EN 331:1998

Datasheet

Hattersley Fig 100YL PN25 Ball Valve Datasheet
