Hattersley Fig 100 PN25 Ball Valve

This is a stock item. Order by 5pm Monday to Thursday and 4.30pm Friday for same day despatch.

Description

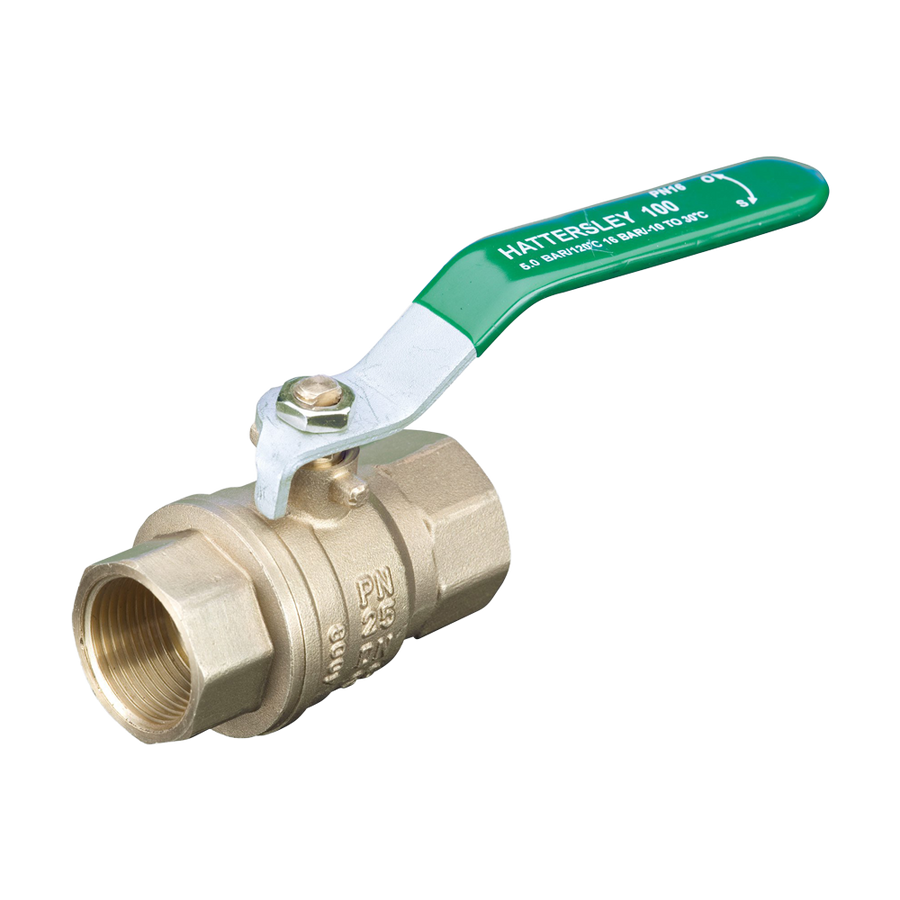

Fig. 100 Threaded DZR - Lever Operated - Ball Valve

Features & Benefits
• Dezincification resistant
• Light, compact and easy to install and operate
• Improved leak protection
• More resistant to damage during installation
• Sizes from 1/2" to 2"
• WRAS Approved for use on hot and cold water systems up to 85°C
• Conforms to BS EN 13547

Material Specification

• DZR Brass

Specification

• UK End Connection: BS EN 10226-2:2005 formerly BS21 Taper
• Operator: Lever
• DZR Brass (CW602N) Body Ball Valve, in accordance to BS EN 13547, two-piece construction, Floating Stainless Steel SS304 Ball, Anti Blow-out stem, PTFE seats, Threaded Ends, PN25 Rated
• WRAS approved
• Suitable for use on Group 2 Gas, Group 1 and Group 2 Liquids as defined by Pressure Equipment Directive 2014/68/EU, as amended*
* Not suitable for use on Group 1 Gases or unstable liquids

Datasheet

Hattersley Fig 100 PN25 Ball Valve Datasheet

Notes

This item is the equivalent of the Crane D171A Ball valve
