Pillar Bib Tap With Removable Nozzle - 900121

Description

This is a stock item. Order by 5pm Monday to Thursday and 4.30pm Friday for same day despatch.

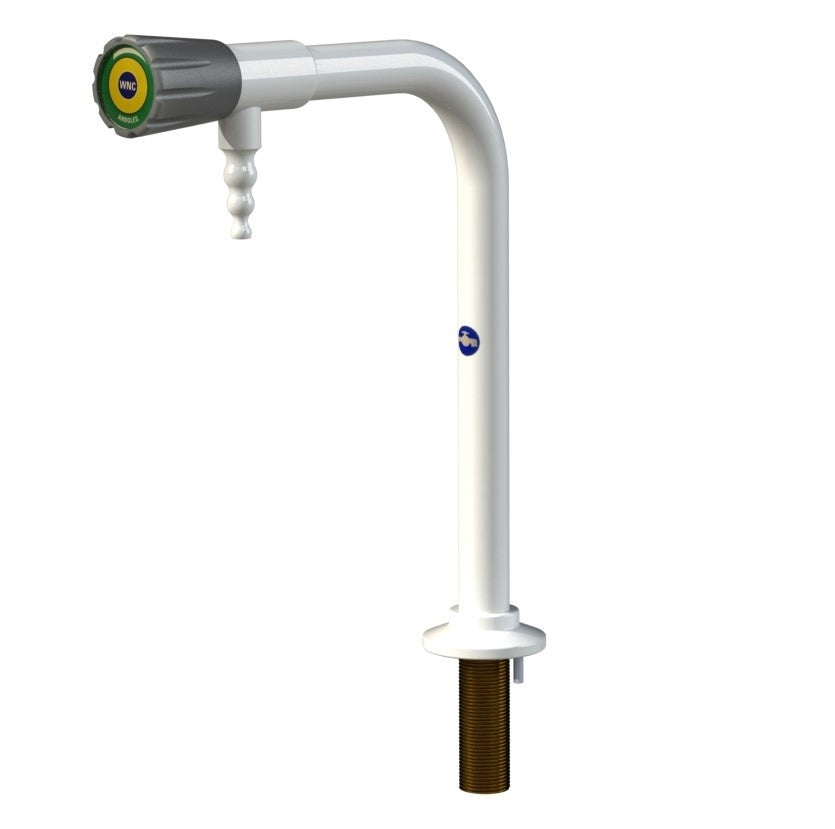

Pillar Bib Tap With Removable Nozzle

The 900121 Pillar Bib Tap with Removal Bib Tap is an ideal water supply solution for classroom environments. Made of solid brass, the tap features a strengthened shank, removable nozzle and an integral anti-rotation pin, making it a robust and durable piece of laboratory equipment.

Available in hot or cold configurations, the removable nozzle demonstrates that this tap has been designed with both flexibility and ease of use in mind. This product is WRAS approved, anti-siphon and features a 1/2” BSP inlet tightened with a back nut.

Installation template provided to ensure a perfect fit.

Specification

Part No: 900121CW-WA
Description: Pillar tap with removable serrated nozzles.
Applications: Standard laboratory water tap for all applications where header tank supply is present (Full WRAS approval).
Options: Fixed or full-bore nozzles are available on request. Hot water.
Construction: All brass body, Rilsan plastic coated, white (RAL9016). Chemical resistant plastic ABS handwheel, Identification coding to DIN13792
Connection and mounting: ½” BSP male flat ended shank x 60mm long with back nut.
Standard anti-rotation base with location pin. Two mounting holes 22mm and 5mm diameter required template enclosed.
Pressure and Flow: Maximum pressure 100PSI (Recommended 20PSI). Flow Rate @ 20 psi = 12 Litre/min.
Spares: Hand wheel Assembly - Pt No 960180, Valve head work - Pt No 950148.
WRAS: Approved

Datasheets

Pillar Bib Tap With Removable Nozzle - 900121 Datasheet
