Monobloc Mixer Tap With Aerator Nozzle - 900115

Description

This is a stock item. Order by 5pm Monday to Thursday and 4.30pm Friday for same day despatch.

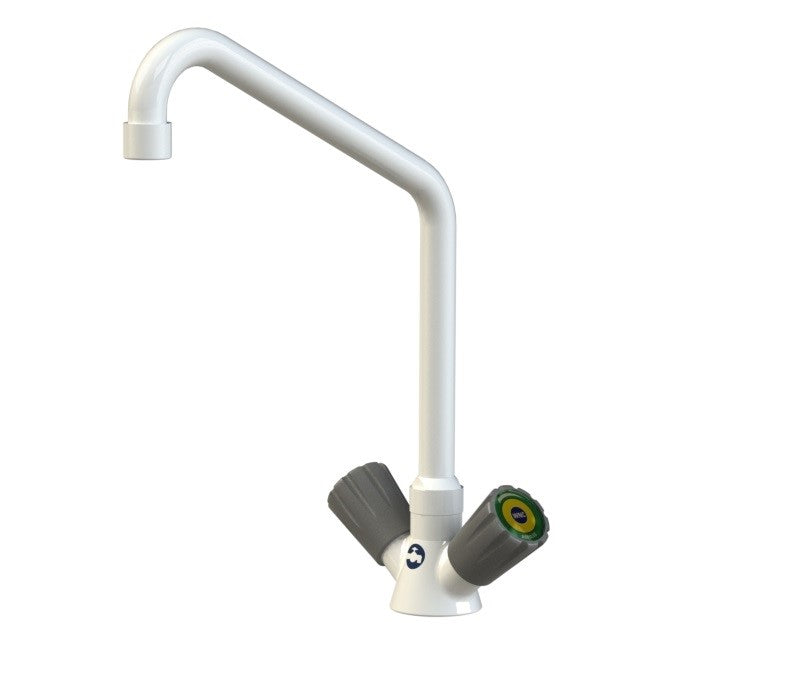

Monobloc Mixer Tap With Aerator Nozzle

The 900115 is a monobloc mixer tap with a movable swan neck and featuring an aerator nozzle. It has a solid brass body and solid brass swan neck. The tap is Rilsan powder coated and along with the construction it makes it incredibly hard wearing. We’ve placed hundreds of these in schools and laboratories.

The aerator nozzle introduces air into the water to produce a softer flow and eliminating splash back. This option is particularly useful if the tap is being used to rinse items. The inlets are 2 x 3/8″ BSP and the tap comes with braided tails for a flexible fit.

The monobloc mixer tap is WRAS approved.

There are a couple of variations available on the model, please contact us for pricing/availability of these items:

- 900116 – Monobloc mixer tap with removable nozzle
- 900119 – Monobloc mixer tap with FIXED swan neck and removable nozzle. The swan neck is brazed into place.

Specification

Part No: 900115MIX-W
Description: Balanced flow laboratory monobloc mixer tap, aerated nozzle.
Applications: Standard laboratory mixer hot and cold water tap.
Options: Removable nozzles are available on request.
Construction: All brass body, Rilsan plastic coated, light white (RAL9016). ABS grey rotating handwheels, Identification coding to DIN13792.
Connection and mounting: 2 x 3/8” BSP female flat ended flexible braided SS hoses, 330mm long.
Pressure and Flow: Maximum pressure 100PSI (Recommended 20PSI).
Mounting Hole: 30mm diameter. Flow Rate @ 20 psi = 35 Litre/min.
Spares: Spare handwheel assembly - Pt No 960180, Valve head works - Pt Nos 950148.
WRAS: Approved materials.

Datasheets

Monobloc Mixer Tap With Aerator Nozzle - 900115 Datasheet
