Hattersley Fig 825W PN25 Strainer

Typical lead time is 3 to 5 working days. We'll contact you if this changes.

Description

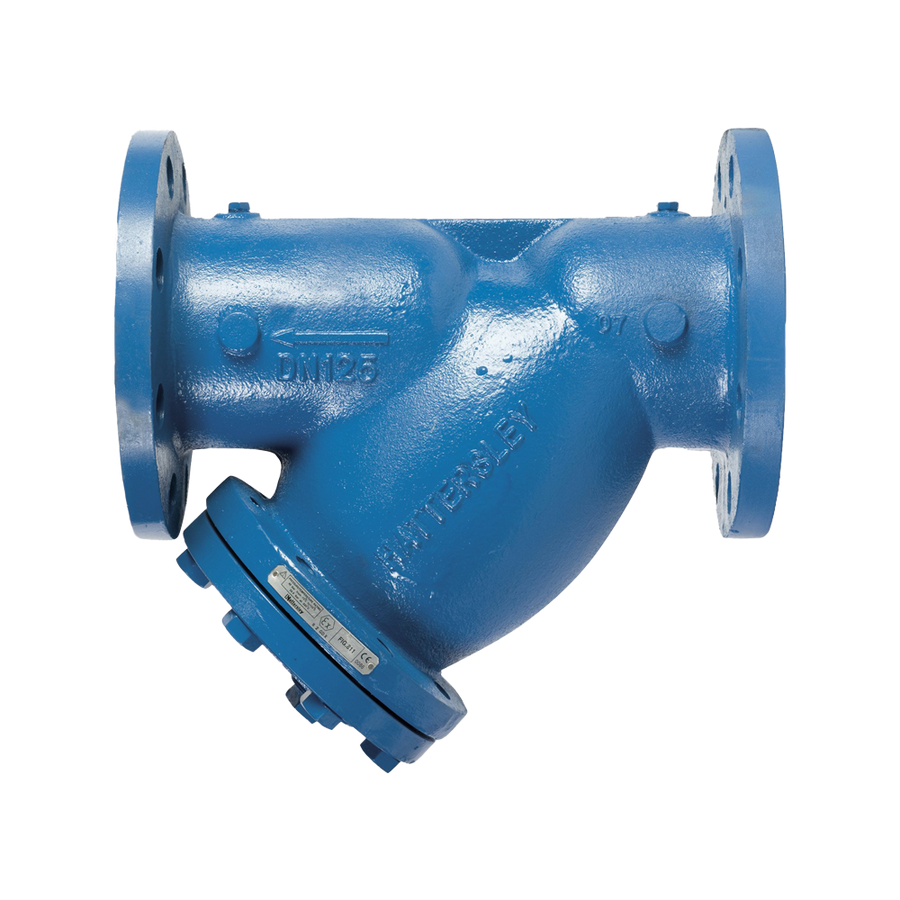

Fig. 825W Strainer

Features & Benefits
• Hattersley strainers will help eliminate the problems caused by foreign matter within
piping systems
• WRAS approved internal and external epoxy powder coating
• WRAS approved gasket
• Available in sizes 65mm to 150mm

Material Specification

• Ductile Iron

Pressure/Temperature Rating

• PN25
• -10 to 85°C

End Connection

• Flanged to BS EN 1092-2 PN25

Specification

• Flanges conform to BS EN 1092-2 PN25 Section 3.2 table 11 with raised face
• Strainers are supplied with a stainless steel perforated strainer element having 1.5mm
diameter holes
• This product is suitable for use on Group 2 liquids only, as defined by the Pressure
equipment Directive 97/23/EC

Datasheet

Hattersley Fig 825W PN25 Strainer Datasheet
