Hattersley Fig 669 PN32 Gate Valve

Typical lead time is 3 to 5 working days. We'll contact you if this changes.

Description

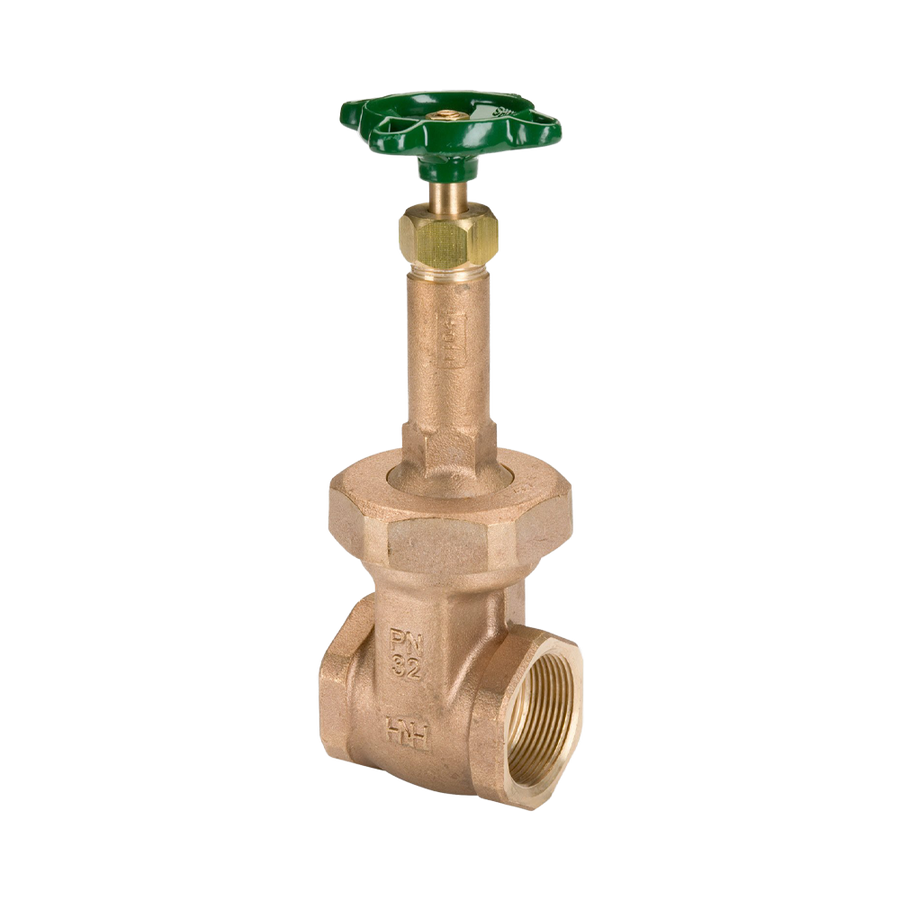

Fig. 669 Bronze Gate Valve

Features & Benefits
• Robust and high quality bronze body with
integral seating surfaces
• Inside screw pattern with rising stem
• Suitable for high pressures up to 32 bar
• Available in sizes 1/2" to 2"

Material Specification

• Bronze

Pressure/Temperature Rating

• BS EN 12288 PN32 Series B
• 14 bar at 260ºC
• 32 bar from -10 to 120ºC

Test Pressures (Hydraulic)

• Shell: 48 bar
• Seat: 35.2 bar

Specification

• BS EN 12288:2010
• Rising stem
• Union bonnet
• One piece wedge
• Taper threaded BS EN 10226 (ISO 7-1) formerly BS 21

Datasheet

Hattersley Fig 669 PN32 Gate Valve Datasheet
