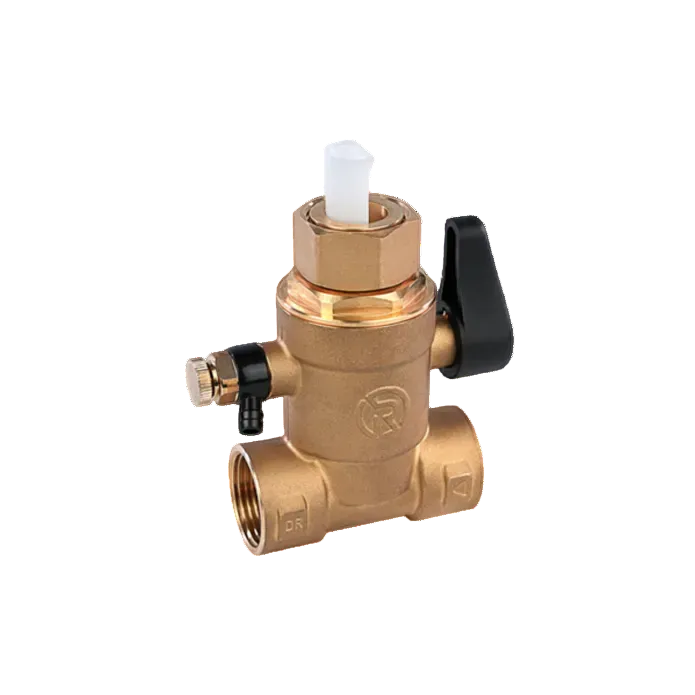

Reliance RWC Anti-Legionella Valve 1" FBSP - ANTI110003

Description

Reduces the risk of Legionella bacteria from contaminating stored cold water within an expansion vessel. Why not check out our range of Expansion Vessels that this valve is suitable for.

Reliance Valve's Anti-Legionella Valve reduces the risk of harmful bacteria such as Legionella from contaminating stored cold water within expansion vessels by maintaining circulation and eliminating stagnation.

With a wide selection of sizes available, the Anti-Legionella Valve can be used in applications ranging from point-of-use water heater expansion vessels to larger plant room storage tanks.

The Anti-Legionella Valve converts a standard single connection expansion vessel into a ‘flow through’ type by diverting a portion of the flow into the vessel, so that the water content is continuously renewed, reducing the risk of water stagnation, which can cause bacteria growth.

Features and benefits:

- Maintains circulation through an expansion vessel
- Prevents stagnation
- Easy to install
- Integrated ball valve and drain valve for easy servicing and maintenance
- For use on any standard vessel with 1/2", 3/4", 1" or 1 1/4" connection
- Suitable for cold water use only
- Compatible with copper pipe only
- ANTI110003 and ANTI110004 has a locking function

Specification

Size: 1"
Connections: BSP Female
Drain Plug Size: 1/4"
Medium: Cold water only
Minimum Working Pressure: 0.1 Barg
Maximum Working Pressure: 10 Barg
Minimum Temperature: 6°C
Maximum Temperature: 30°C
Product Code: ANTI110003
Notes: WRAS approved. NSF REG 4 Approved. Tested to function in accordance with DIN EN4807.
